Polyeco? NS thermoplastic polyolefin (TPO) waterproofing membrane

BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾
BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾
BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾
BBÊÓѶ¡¤(ÖйúÓÎ)ÓÐÏÞ¹«Ë¾

Scope of application

Scope of application: widely used in industrial and civil building roofing and underground space waterproof engineering, more suitable for waterproof layer above or outside with cover panel shade protection built-in single-layer roof.

Product specifications

Type Thickness£¨mm£© Width£¨m£© Length£¨m£© Overlapping

H£¨¾ùÖÊ£©

L£¨´øÏËά±³³Ä£©

P£¨Ö¯ÎïÄÚÔöÇ¿£©

1.2¡¢1.5

1.8

 1¡¢2 20 Welding


Product features

1.Reliable formula and technology, and ever-evolving performance;
2.Eco-friendly chlorine-free formula;
3.Diversified options of material for the structural layer, in a bid to cope with various installation methods adaptively, thereby saving time and costs;
4.Recyclable for high material utilization.

Technical indicators

Executive Standards:GB27789-2011¡¶Thermoplastic Polyolefin (TPO) Waterproofing Membrane"

project index
H L P
The thickness of the resin layer on the intermediate tire base/mm ¡Ý - - 0.4

Tensile properties		 Maximum tensile force/ £¨N/cm£© ¡Ý - 200 250
Tensile strength/MPa ¡Ý 12.0 - -
Elongation at maximum tensile force/% ¡Ý - - 15
Elongation at break/% ¡Ý 500 250 -
Low temperature bending -40¡ãC without cracks
Seam peel strength/ £¨N/mm£© ¡Ý 4.0 or coil destruction 3.0
Right angle tear strength/ £¨N/mm£© ¡Ý 60 - -
Artificial climate accelerates aging Time/hour 2500
appearance No blistering, cracks, delamination, bonding and holes
Maximum pull retention/% ¡Ý - 90 90
Tensile strength retention/% ¡Ý 90 - -
Elongation retention at maximum pull/% ¡Ý - - 90
Elongation at break retention/% ¡Ý 90 90 0
Low temperature bending -40¡ãC without cracks



Construction steps

Mechanical fixation method:

base layer cleaning ¡ú laying air insulation layer ¡ú laying insulation board ¡ú pre-laying coil ¡ú fixed coil ¡ú lap treatment ¡ú node strengthening ¡ú self-inspection and acceptance

Full adhesion method: base layer cleaning ¡ú pre-laid coil ¡ú Large surface gluing ¡ú Laying coil ¡ú lap treatment ¡ú node strengthening ¡ú Closing treatment ¡ú Self-inspection and acceptance

Empty laying method: base layer cleaning ¡ú pre-laid coil ¡ú lap treatment ¡ú node reinforcement ¡ú self-inspection and receipt

Case show

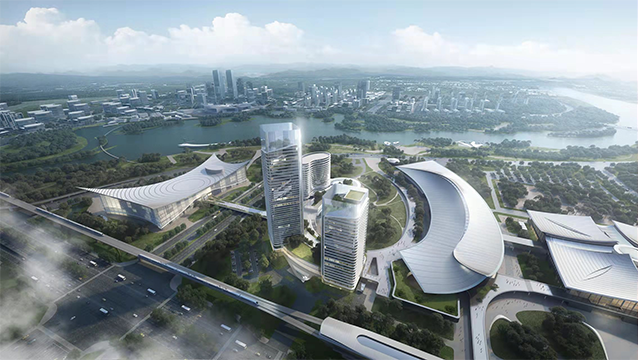

Xiaohe International Convention and Exhibition Center
